1220 Horizontal Bending MEDIA Silicone LED Neon DC24V IP67 UV Resistant
Quick Detail:
· Voltage: DC24V

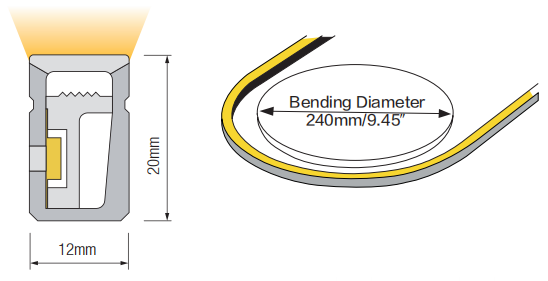

· Neon Size: 12mm*20mm
· Bending Direction: Side bending (horizontal bending)
· Unit Cut: 125mm
· Power Wattage: 3.3W/m;/10W/m
· Max Run Length: 5m
· IP Rating: IP67
· Endcap Option: Injection, Silicone, Mechanical
· CE, RoHS, TUV, UL compliant
· 5 Year Warranty
Specifications:
| Model | LEDLINE ASTON 1220 MEDIA |
| LED PIN Temperature | Max. 65℃ /149° F |
| LED Power | 3.3W/m;10W/m |
| Input Voltage | DC24V(23.5min,24.5max) |
| Neon Dimension | 12mm*20mm |
| Unit cut | 125mm |
| IP Grade | IP67 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >30000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 3 years |
| Leds/m | 80 |
Download datasheet: LEDLINE ASTON 1220 MEDIA Datasheet.pdf
Notices:
- Max. run length refers to single side feed in serial connection.
- The given data are typical values due to the tolerances of the production
process and the electrical components, values for light output and electrical
power can vary up to 10%.
- The given color temperature is the temperature of finished product.
Applications:
1. Facade lighting, contour lighting and landscape lighting.
2. Solutions for retail shops.
3. Decoration lighting for game machines.
4. Ideal for architectural lighting, coves, object integration.
FAQ:
Q1. For long-term cooperation customers, the price will be favorable?
A: Of course it will, Long-term clients are like family to us.
Q2. What are the advantage of your products?
A: We dedicate on LED Strips with more than10 years experience and have nearly 10 years cooerpation with Philips. Our factory has a variety of advanced equipment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
